SURGE SUPPRESSORS

ESSENTIAL PROTECTION AGAINST OVERVOLTAGE

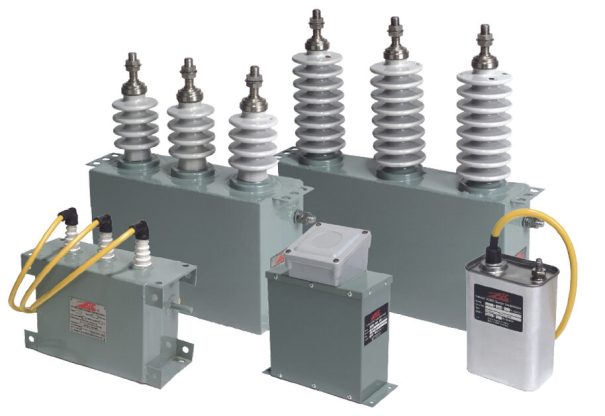

Cressall can now offer ZORC™ products, a range of unique high-frequency transient overvoltage surge suppressors for the protection of motors, transformers, generators and filter banks from steep wave-front, short rise-time, high magnitude, spikes, surges and other transient voltages, generated by switching and certain other sources.

The protective characteristics of ZORC™ provide comprehensive insulation coordination with both the CiGRé and IEEE motor impulse voltage withstand characteristics at all practical surge magnitudes and rise times.

Overvoltages are not only related to atmospheric impulses, in reality faults and damage can often be caused by other overvoltages such as switching overvoltage, transient recovery voltages and iron-resonance overvoltages. It is the latter reasons where the installation of ZORC™ should be considered.

Key Features:

Saves money by eliminating production downtime due to insulation failure.
Protects motors, generators and transformers throughout their service life.
Eliminates multiple pre and re-strike transients associated when switching on or off with vacuum and other switchgear types.
Standard and intrinsically safe models available.
Three and single phase

Product Functions:

System Voltage: 3 phase 400V to 13.8kV with single phase at 15kV
Transient protection: 0.1 to 0.2 micro seconds range
Special compact versions that can be ﬁtted within most motor/transformer terminal enclosures or switchgear panels
RC single phase units available from 24-40KV

Applications for motors include:

Fans
Compressors
Conveyors
Generators
Crushers

Motor-generator sets
Pumps
Mills
Mine winders
Mini and mobile substations
Power station auxiliaries

Other Applications include:

Induction and arc furnaces
Mini and mobile substations
Dry type transformers
Refrigeration machines
